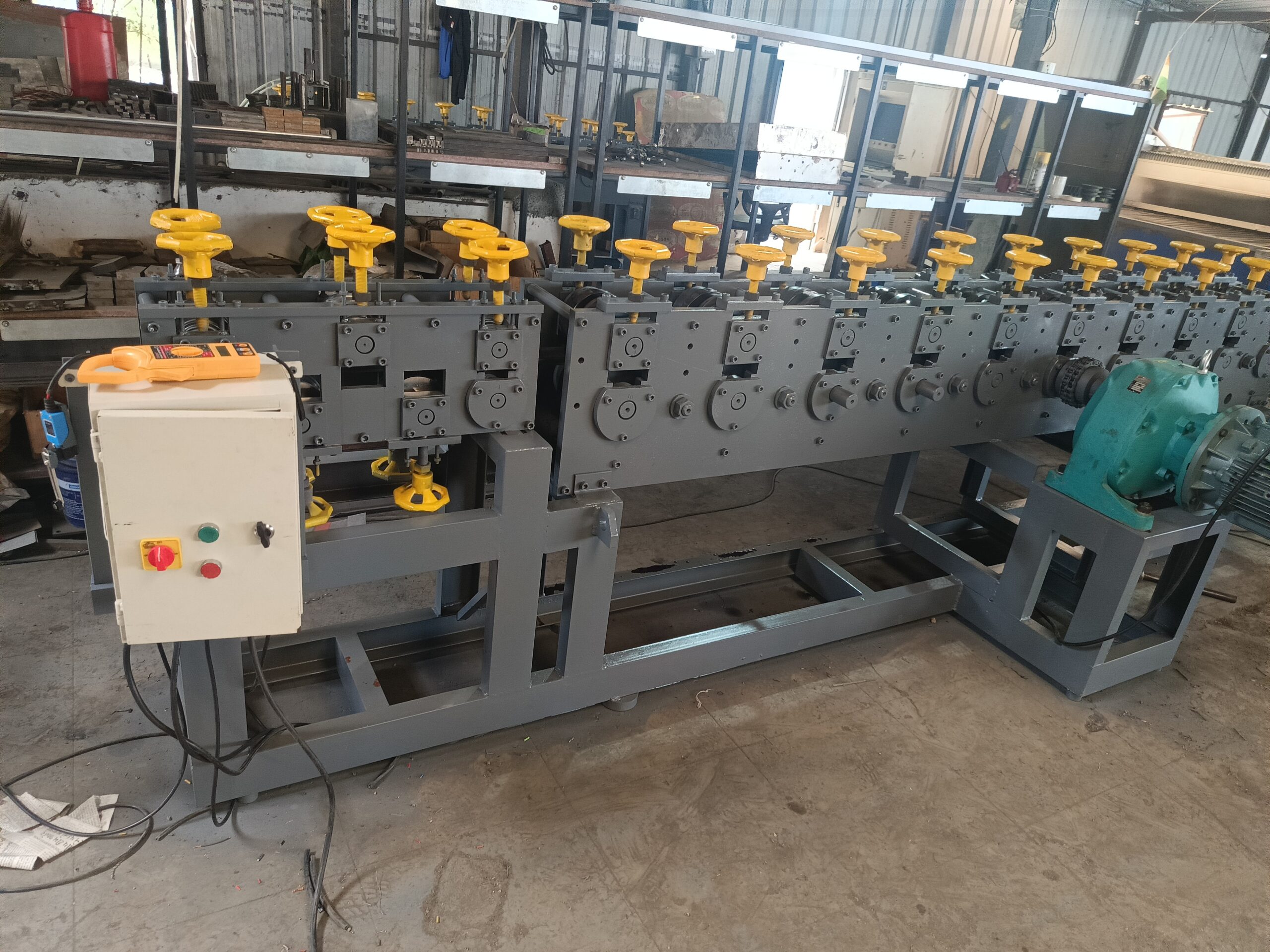

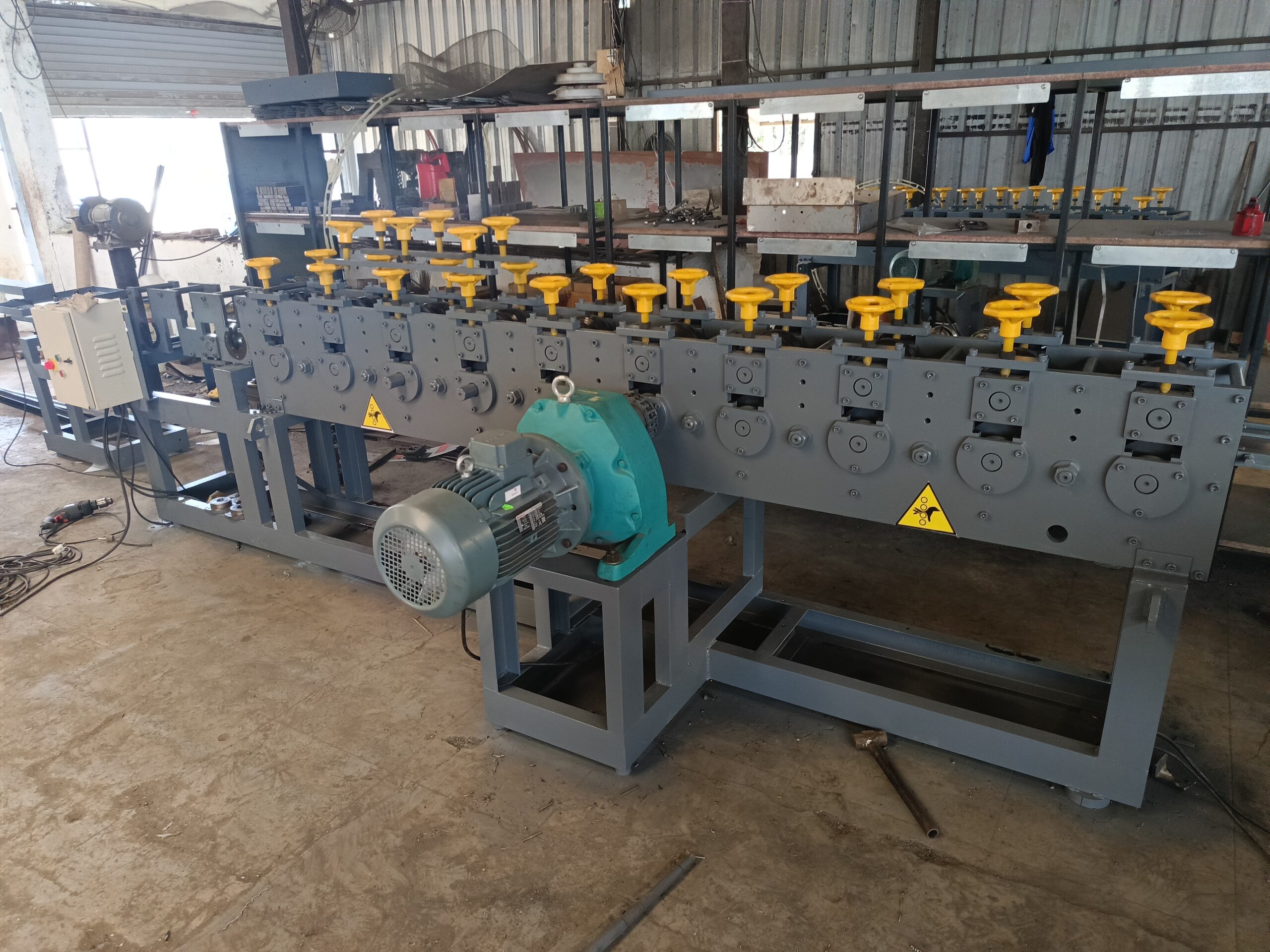

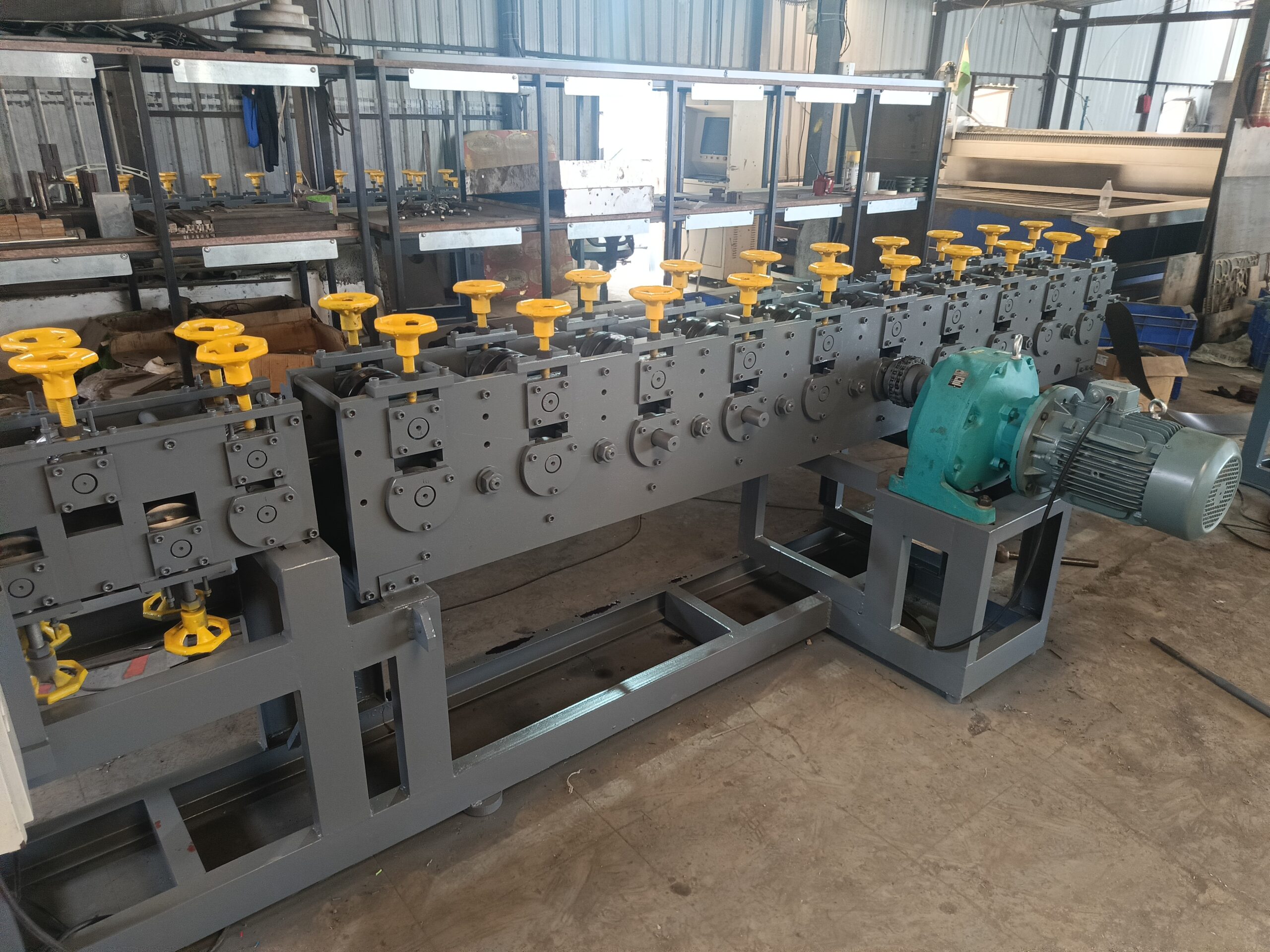

Z Beam (for storage rack) Profile Roll Forming Machine

Forming stations: about 21 stations
Roller material: D2
Shaft diameter: 80mm, material 40Cr
Main motor power: 37Kw
Hydraulic cutting power: 11Kw
Cutting blade material: Cr12Mov
PLC control system: Panasonic

Z Beam Storage Rack Machine is a unique low profile shelving system that uses a special Z- shaped that reduces the shelf height and enhance the clearance between shelves.
It is low profile bolting system. Its unique Z beam design provides high storage capacity and helps in particle board decks to sit flush with the top of beams. Z Beam Storage Rack Machine gives you a very attractive low profile light duty shelving system at a very reasonable cost.

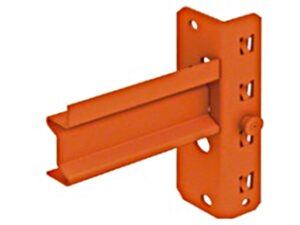

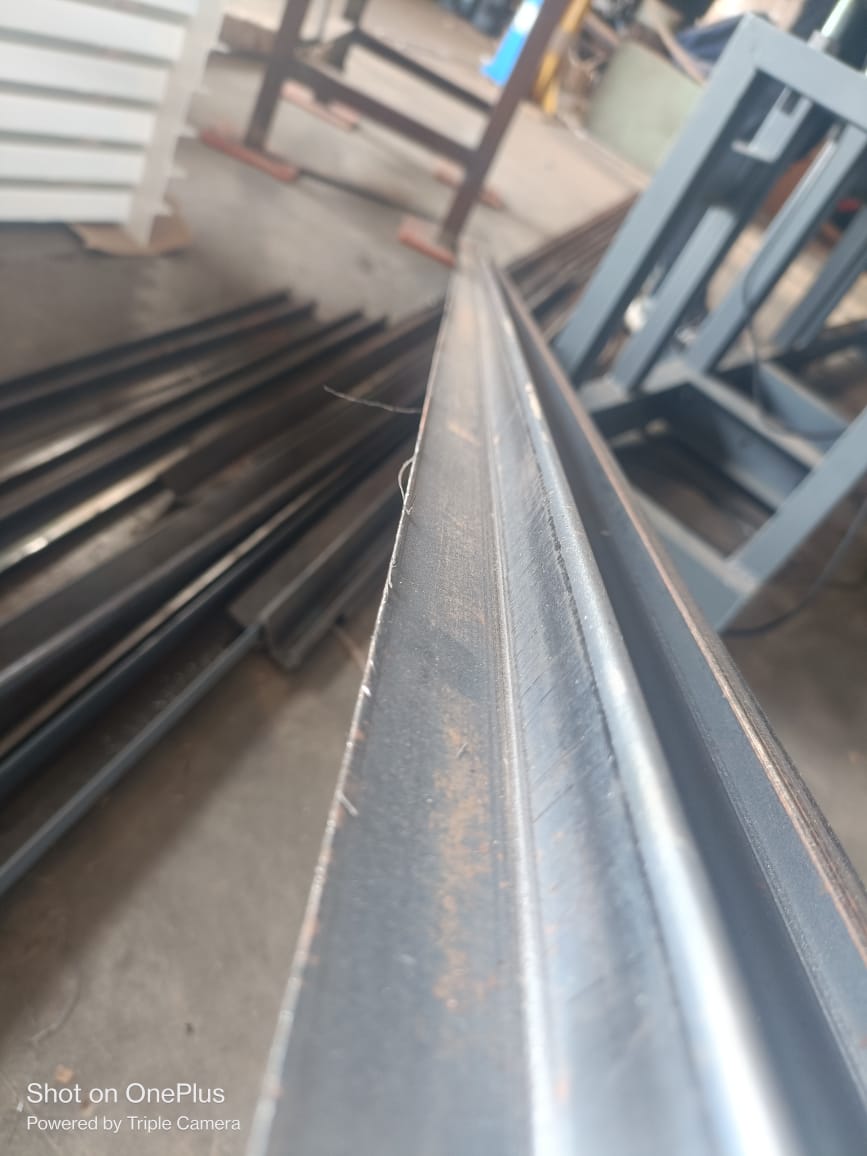

Picking beams or Z beam rolling forming machine is designed to make the Z beams or picking beams in batch fully automatically. Shelves can be fitted into these picking beams, and then used to store loose goods or pick items from them. Z beam this profile, made of a Z-profile welded to a four-hook connector.
at each end, is folded to create a raised edge into which shelves can be placed. This beam is used to create picking levels in pallet rack installations. Z-Beam Boltless Shelving Roll Forming Machine.

Work Flow

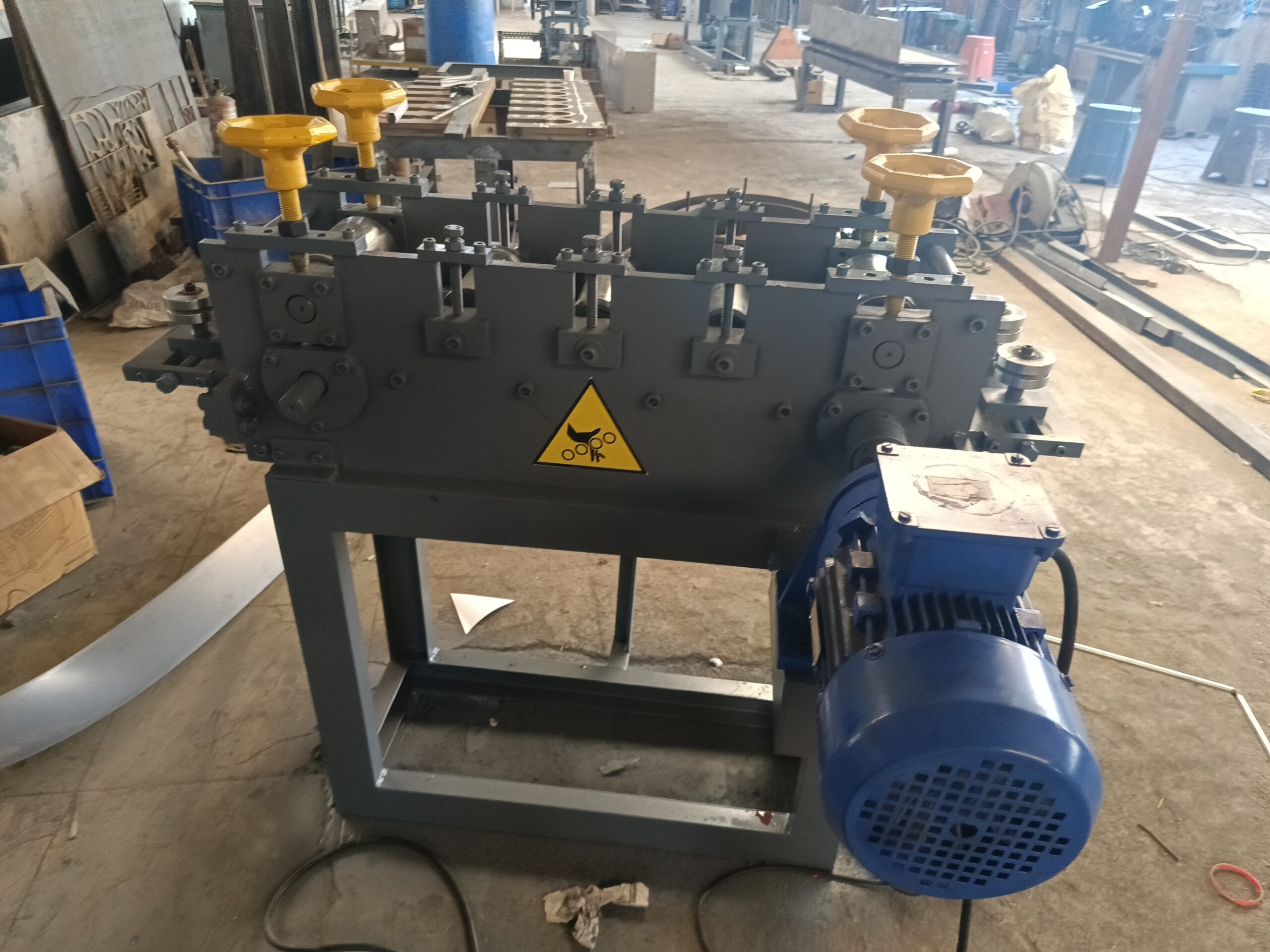

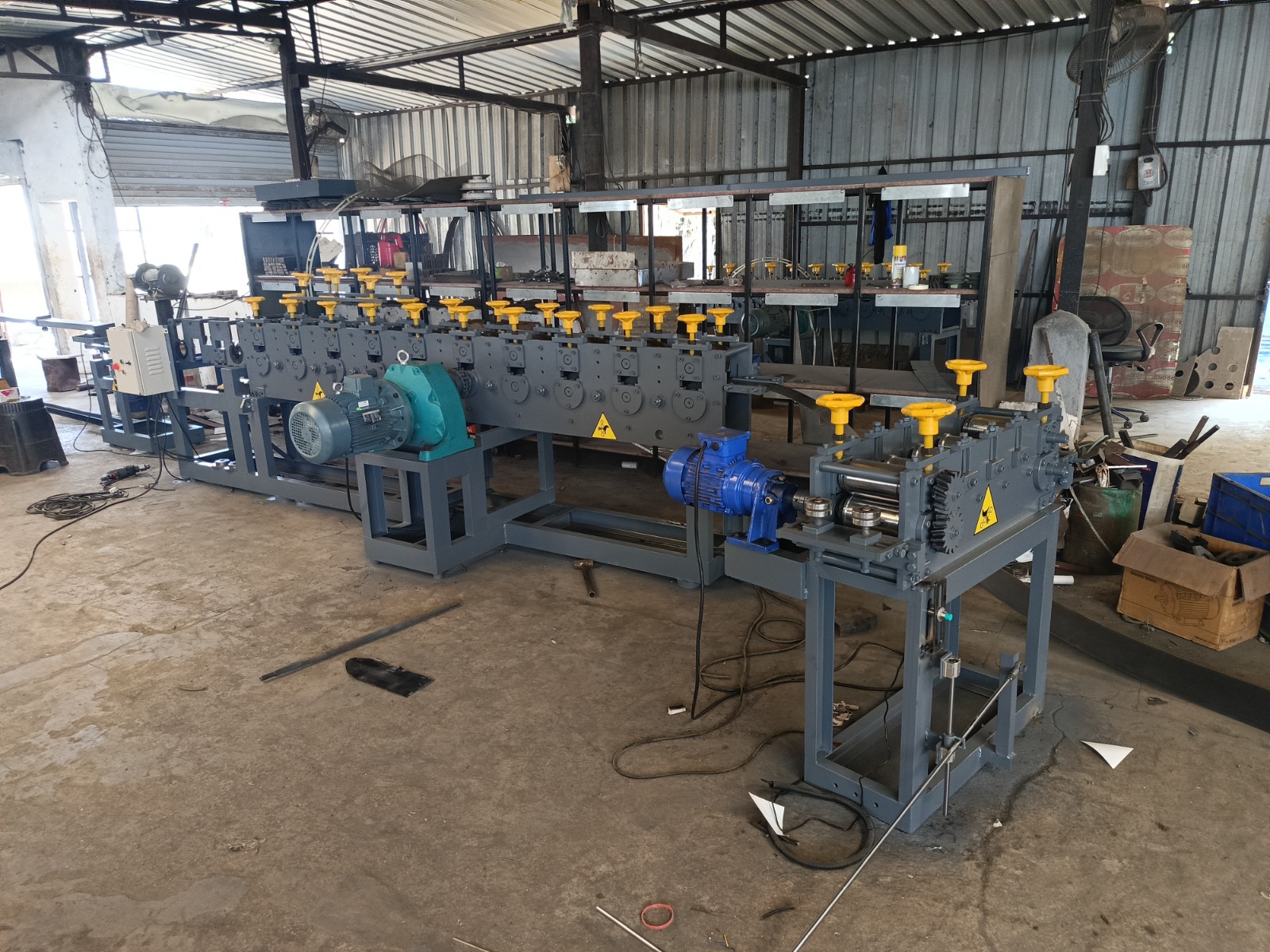

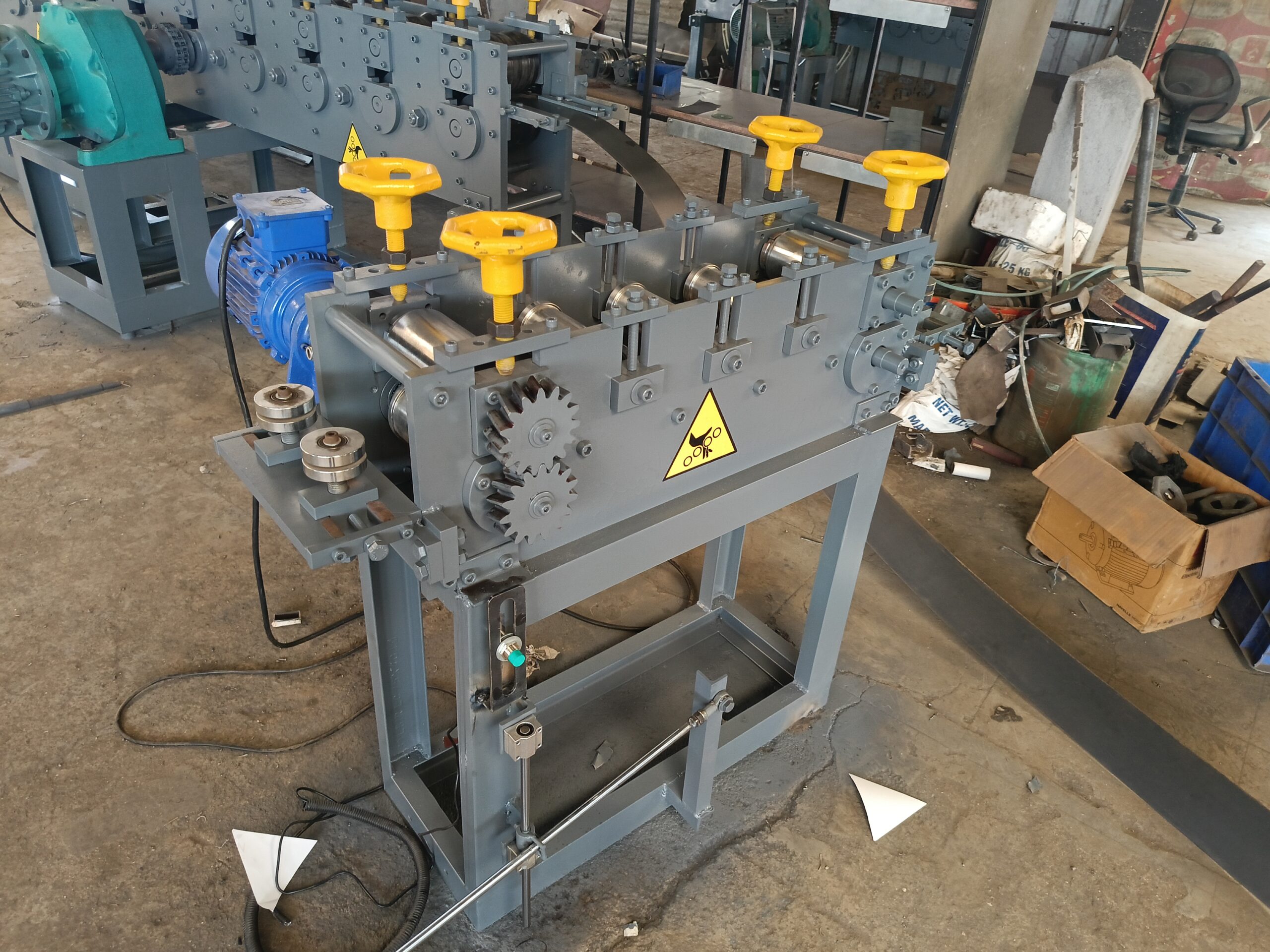

Decoiler→Feeding Guide Device→Leveling Device→Punching Device→Roll Forming System→Hydraulic Post Cutting Device→Exit Rack

Advantages of Z beam Rivet Shelving rolling forming machine

Technical specification .
