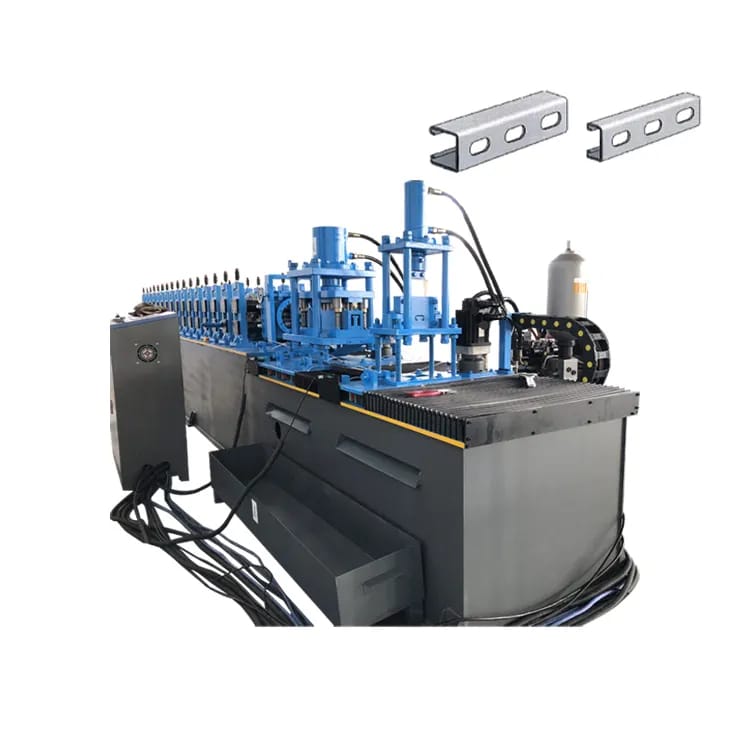

Solar Uni strut Channel Making Machine

The uni-strut channel roll forming machine also called solar panel mounting machine.
Strut Channel is a standard cold roll formed steel used in electrical industry or constructions for structural support. Which is usually formed from metal coil strips, roll formed into an open channel section with lips to provide additional stiffness. The basis strut channel sizes are: 41*41. 21*21, and also some customized shapes.

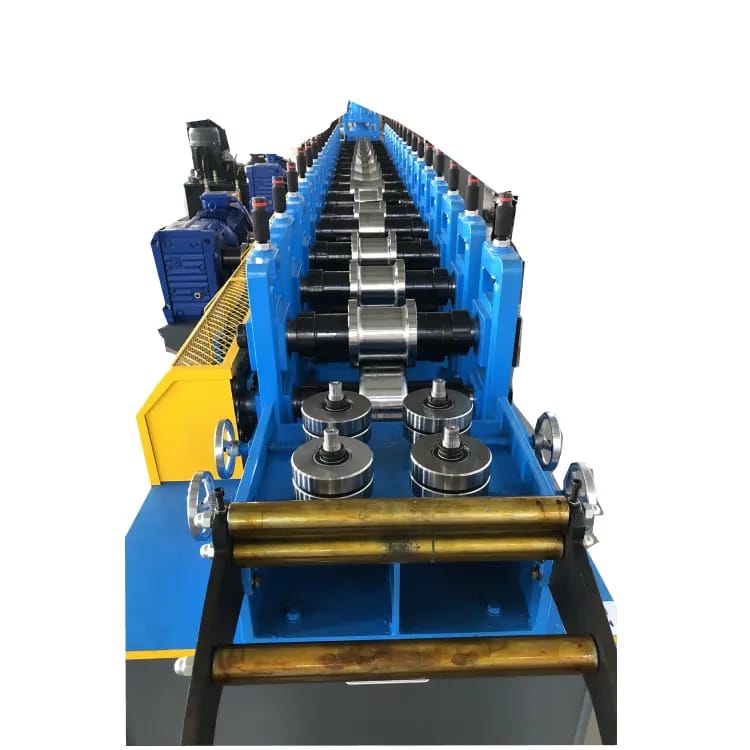

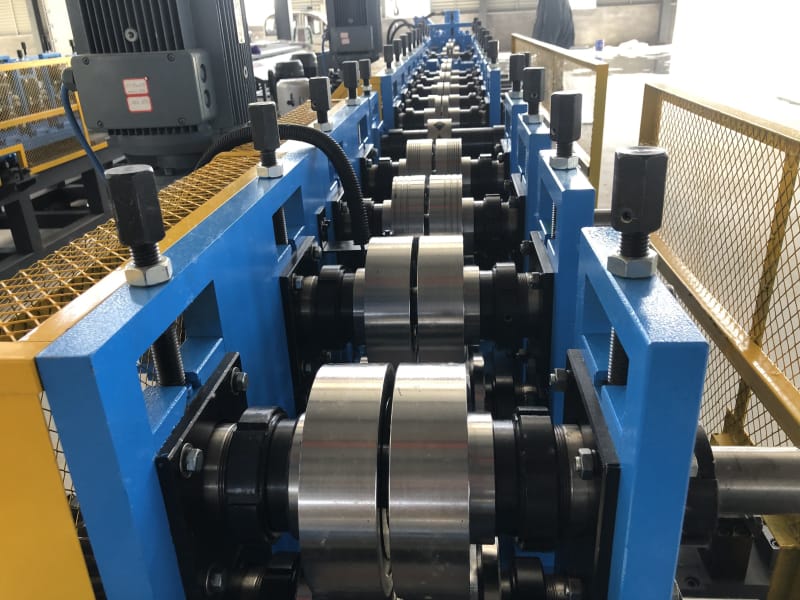

Strut Channel Roll Forming Machine is to form 1.5mm-3.0mm strut channels with various types. The machine is able to produce 3 or more types of strut channel by adjust the roll forming mould. We have 2 design of the adjust method:
Adjust the spacers to achieve the type changing. The workers need adjust all the spaces of top and bottom rollers. the change over time is at least 6-8 hours.Replace the whole roll forming mill. The roll forming mill will fastened on a mill base, and easy to replace. The changeover time is within 2 hour.

Specifications:

Right from our establishment in this market, we have been engaged in manufacturing and supplying an excellent stock of Solar Strut Channel Cold Roll Forming Machine. It is well integrated with latest working mechanism that make sure smooth rolling of metal and plastic sheets. Capable of working on various ferrous and non ferrous metals, this machine is provided to our customers in a wide range of specifications to meet their exact needs. This Solar Strut Channel Cold Roll Forming Machine is high in demand in construction, automotive & engineering industry.

Technical specification

Material thickness: 1.8-2.5mm
Roller stations: about 22 stations
Main motor power: 45Kw
Roller material: D2
Shaft material: 40Cr
Forming speed: 0-15m/min
Control System: Siemens PLC& transducer
