Slotted Angle (V) Roll Forming Machine

Raw MaterialGalvanized steel, strip thickness : 0.6 to 1.8mm

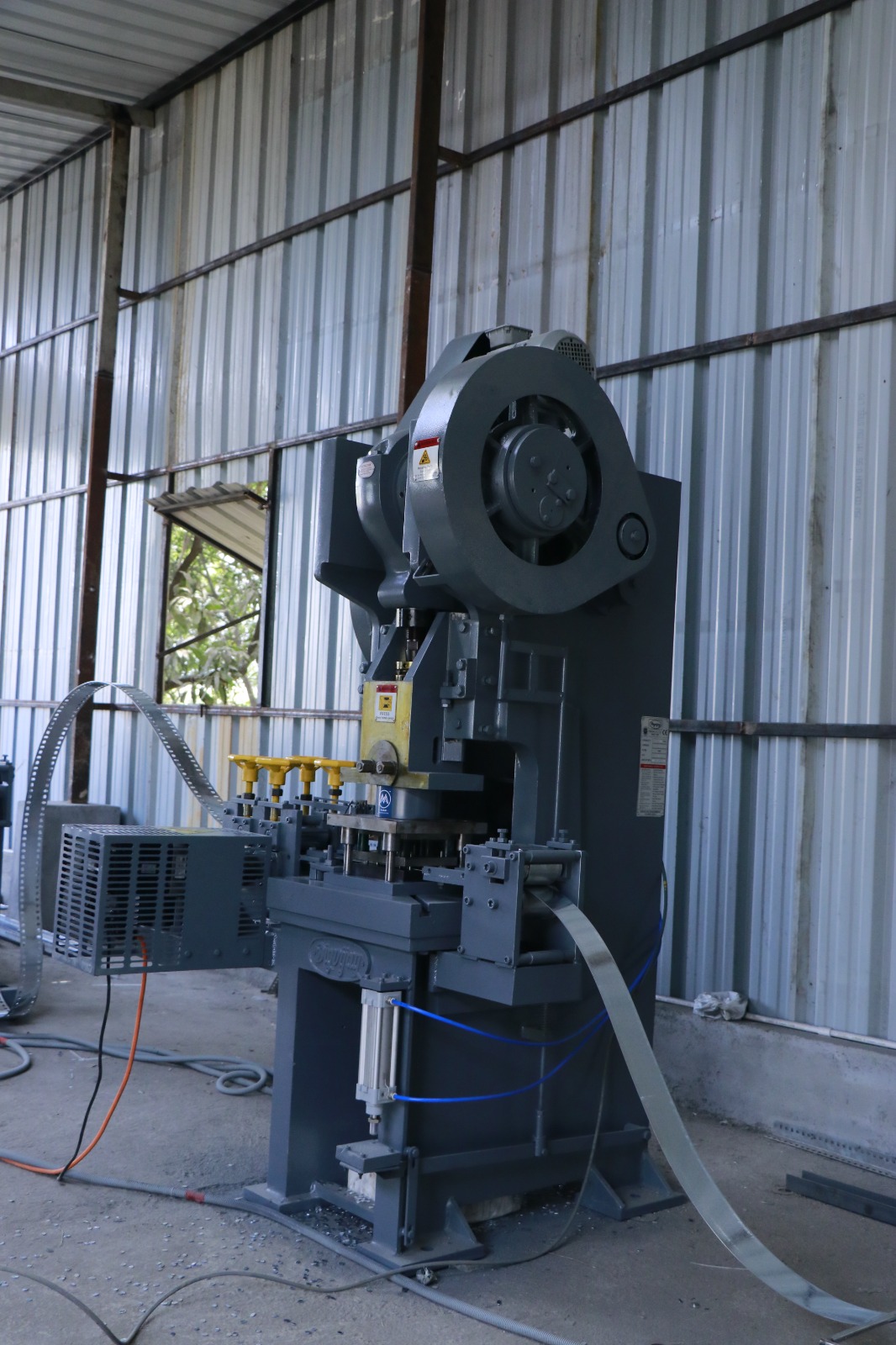

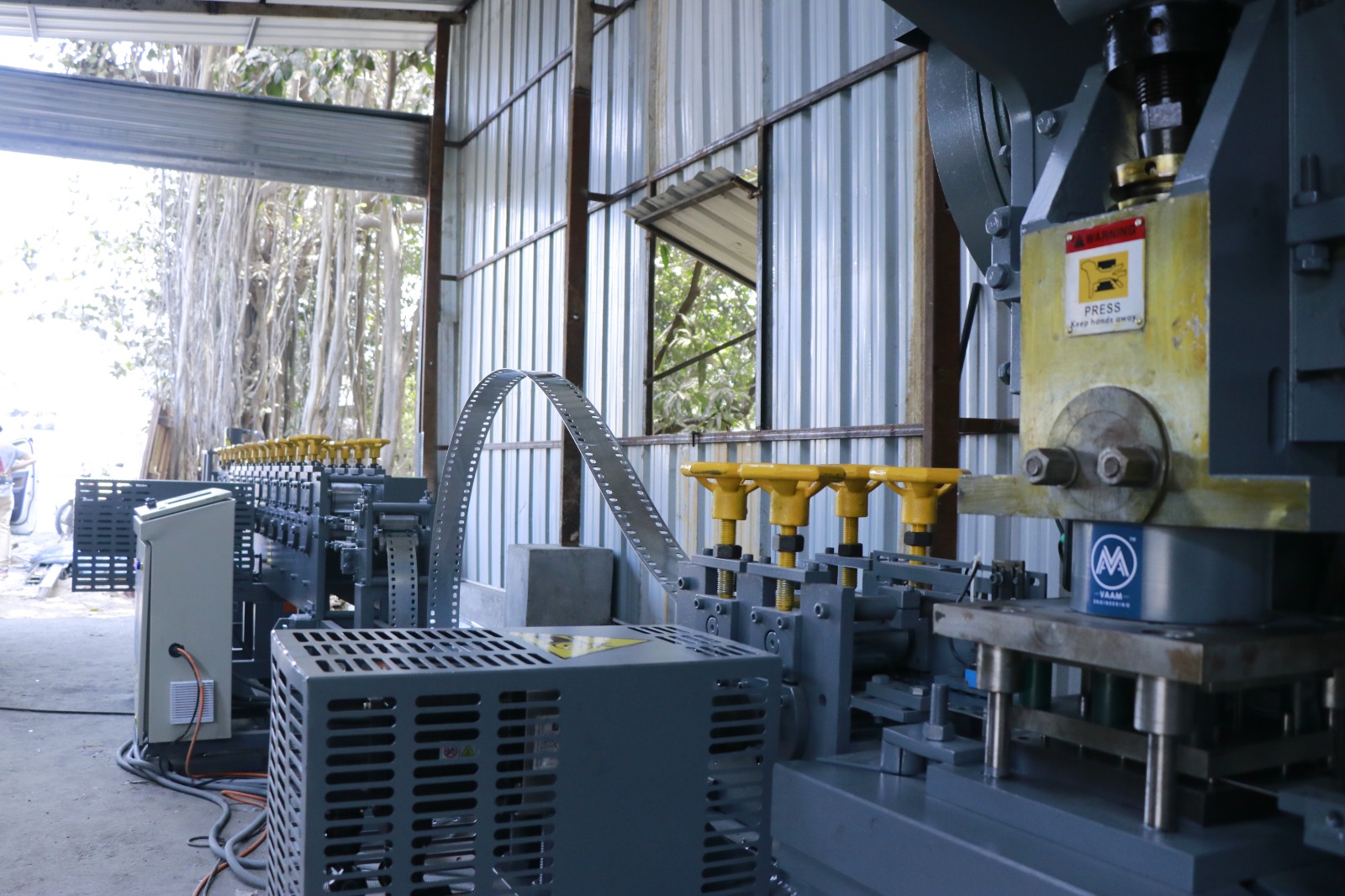

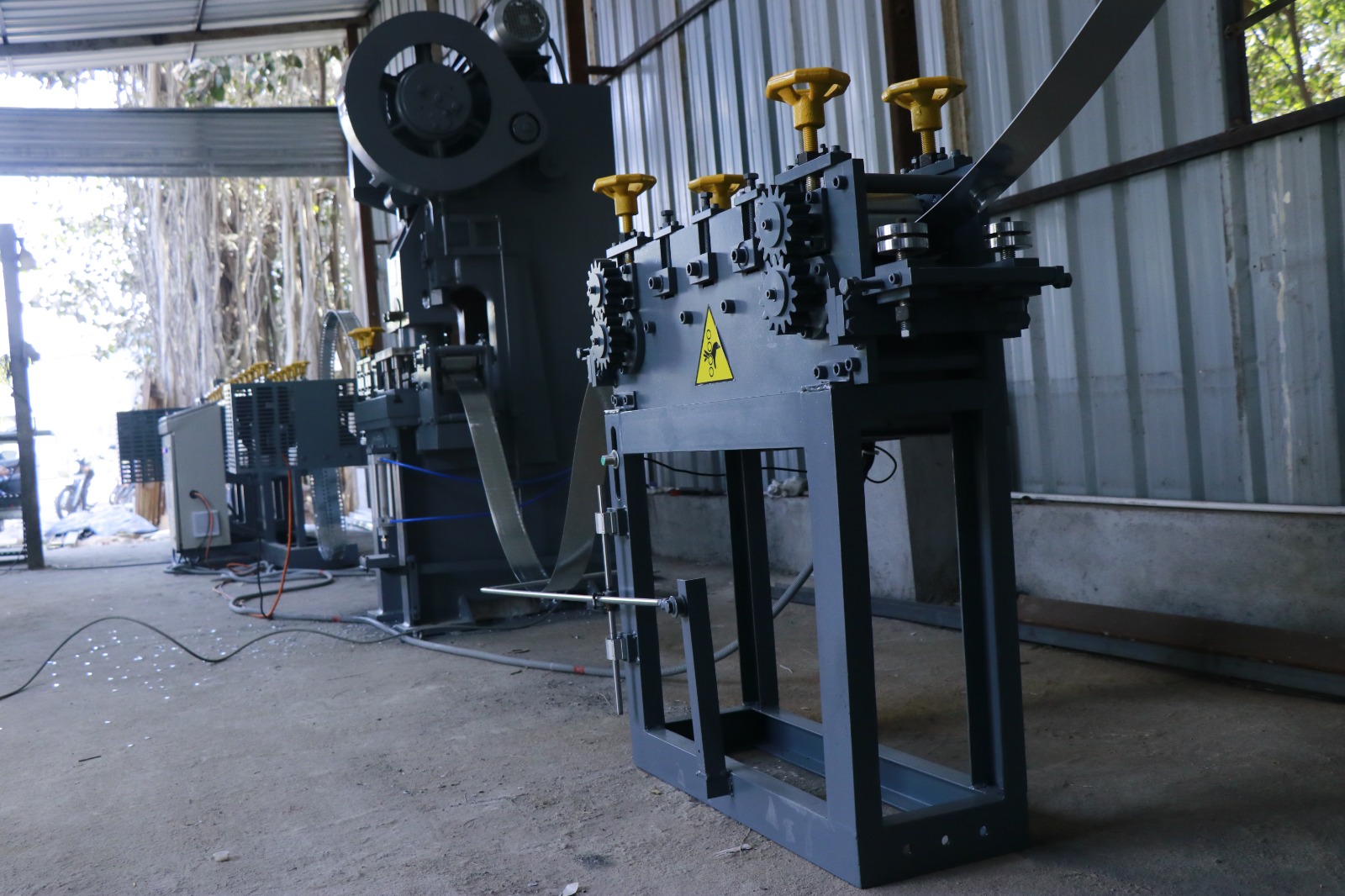

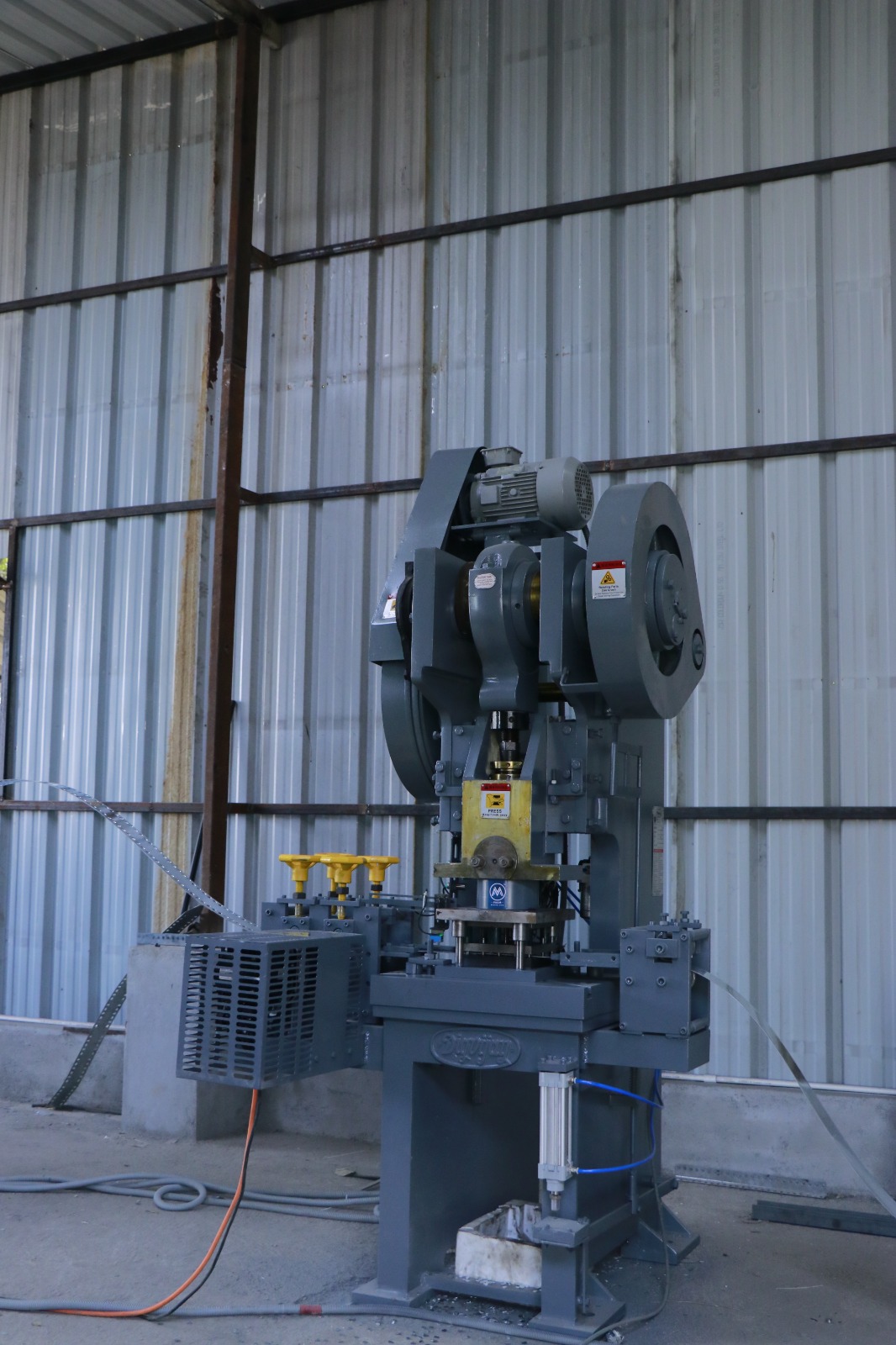

ProcessCoil → Hole punching →Roll forming → Automatic cut-off → Finished products.
Features1.Forming roller transmitting system: Driven by AC motor on  common shaft, individual reduction gear for each roll forming stand. All rollers are turning simultaneously.
2. Forming line speed: Max 9 meters/minute. Forming speed is adjustable.
3. Automatic hydraulic cut-off device: Designed hydraulic power system for easy and long-hour operation.
4. Cut-off is in SKD11 die steel, vacuum heat treatment to HRC 58-61°, wear-resistance, good rigid structure and long life.
5. Products length: 1.5 – 4.0 meters, length is adjustable. Length tolerance is within ±3.0mm.
SpecificationA. Single head Uncoiler x one unit.
1. Loading capacity: 1,100 Kgs
2. Coil size: O.D. 1,200 mm. I.D. 480 – 510 mm. Width: 100 mm.
3. Manual coil tightening
4. Driven motor: 2HP.
B. Cold roll forming machine x one unit.
1. Model: G-240-CL type. (Fixed type)

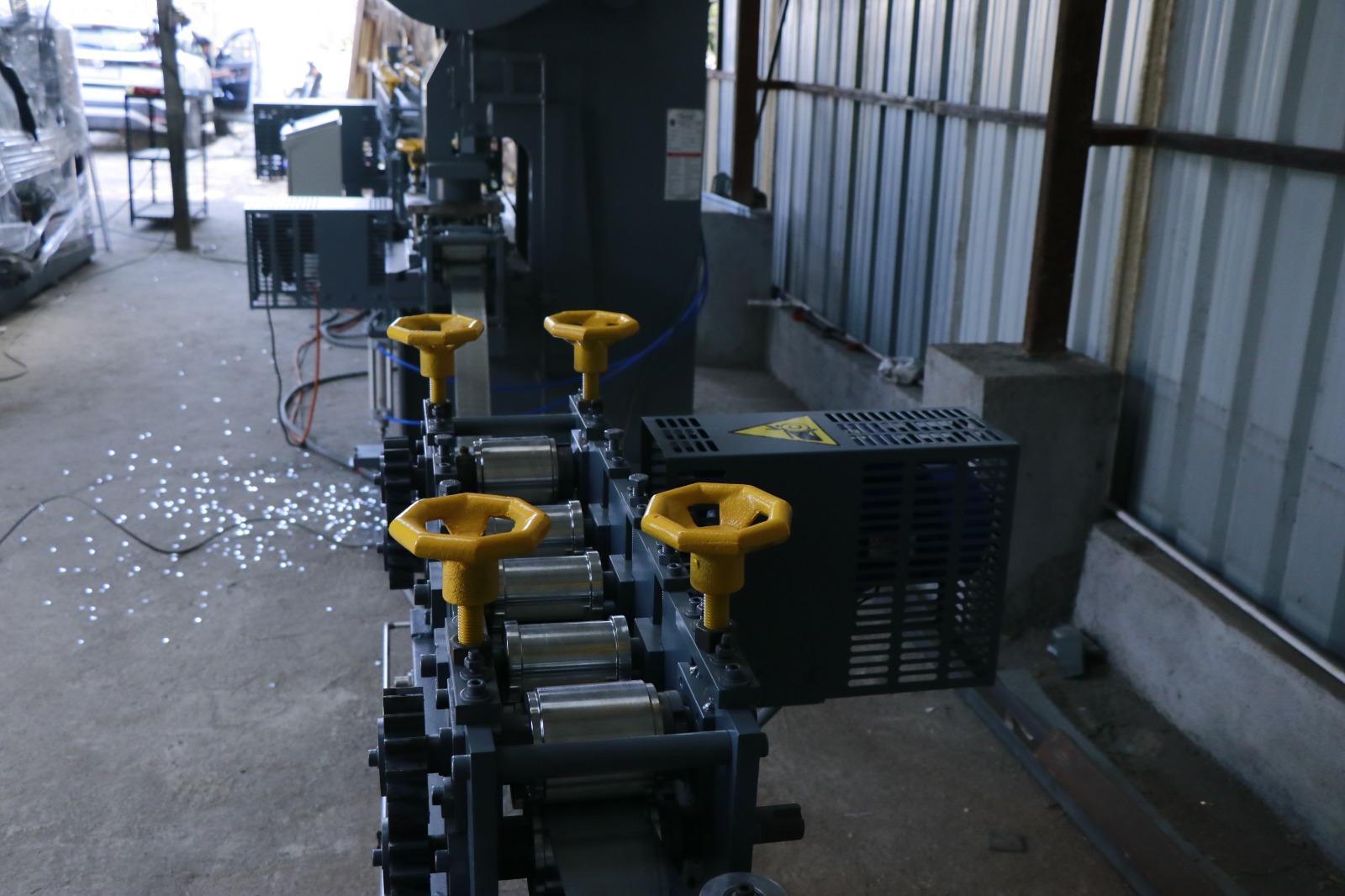

2. Roll Forming Stands: 12 stands with entry guide stand.
3. The machine base is made of high-strength steel with precise welding, stress relief treatment. Each stand will have an     individual worm gear reduction, and a common drive shaft to drive all rollers running simultaneously.
4. Main driven motor: 7.5 HP motor
5. Forming rollers: one full set for AS-245E corner angle.
6. Roll shaft: Ø40mm, in S45C mild steel.
7. Rolls: use the material SKD11 with vacuum heat treatment, Hardness is HRC 58-61, wear-resistant and durable.
8. Roll forming speed: Max 9 meters/ minute, and speed is adjustable. Max. 3 PCS/min based on the length of 3 meters/pc
9. Cooling system for forming rollers: 1/2 HP x 1 set

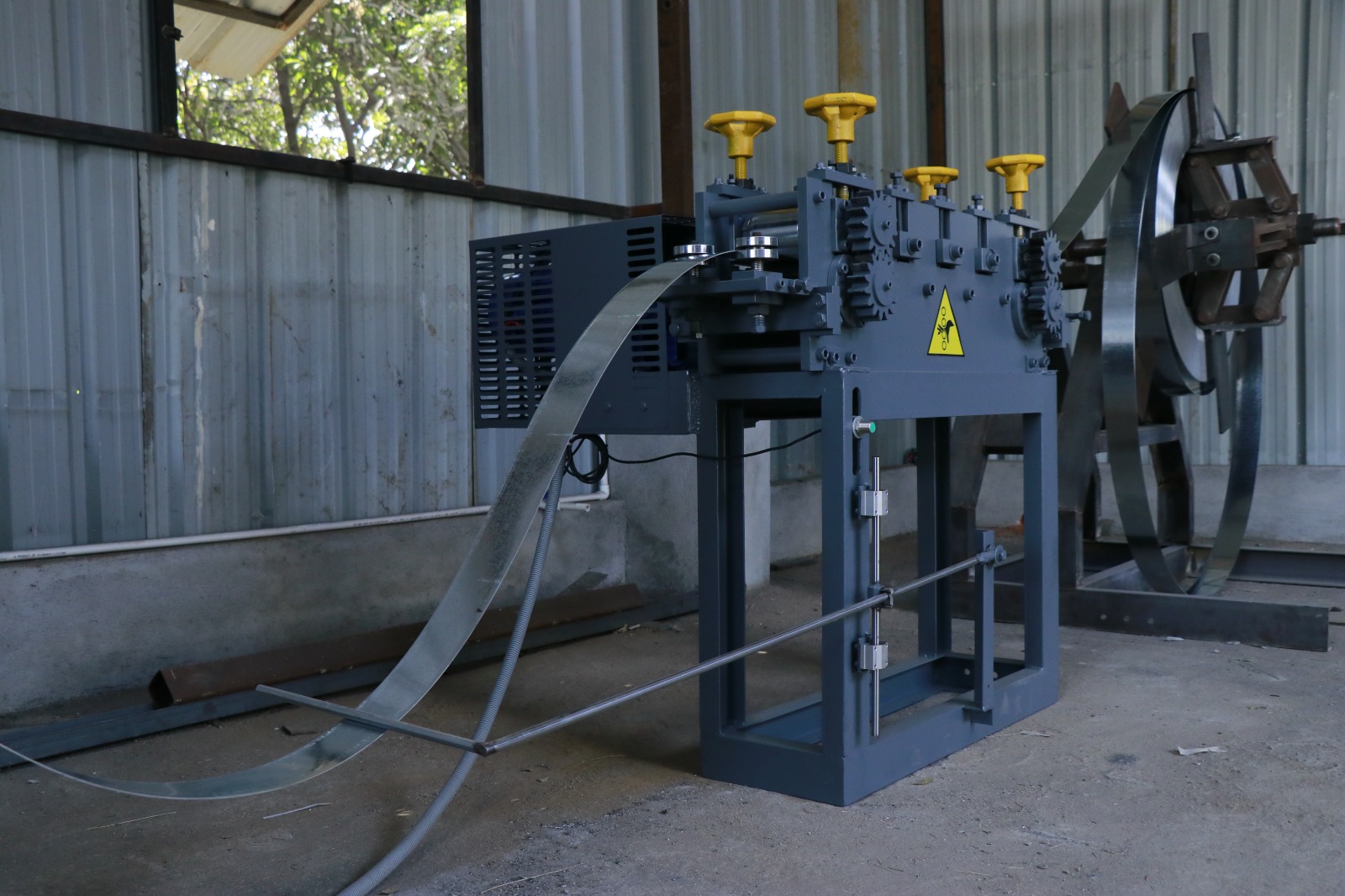

10. Product straightener: 1 set
C. Automatic cut-off device x one unit
1. Cut-off blade is in material of SKD11 with vacuum heat treatment, Hardness HRC 58 – 61, wear-resistant, steel structure.
2. Special designed system gives trouble-free operation.
3. Cut-off length: 1.0 – 4.0 meters, Length is adjustable. Length tolerance is ±3.0mm.
4. Hydraulic pack (3 HP): 1 set.
5. Cut-off blade: 1 set.
D. Product run-out table (3.5 Meter) x one unit.
1. Run-out table with products carrier.
2. Stacking device for products stacking and packing  x 2 sets.
3. Length locator x 1 set.
F. PLC electric control system x one unit.
1. Mitsubishi PLC controller x 1 set
2. HMI control panel x 1 set.
3. Electric voltage will be confirmed before placing order.
