Slotted Angle (V) Roll Forming Machine

VAAM™ Engineering’s Slotted Angle (V) Roll Forming Machine is designed for high efficiency, accuracy, and long-term reliability. Built to meet global manufacturing standards, this machine delivers consistent output with minimal material waste, making it ideal for large-scale and export-oriented production facilities.

Engineered with precision-machined components and chrome-plated rollers, the machine ensures superior surface finish, dimensional accuracy, and extended service life.

Slotted Angle (V) Roll Forming Machine

VAAM™ Engineering’s Slotted Angle (V) Roll Forming Machine is designed for high efficiency, accuracy, and long-term reliability. Built to meet global manufacturing standards, this machine delivers consistent output with minimal material waste, making it ideal for large-scale and export-oriented production facilities.

Engineered with precision-machined components and chrome-plated rollers, the machine ensures superior surface finish, dimensional accuracy, and extended service life.

Key Advantages

  • High production efficiency with accurate execution of orders
  • Robust and reliable equipment for continuous operation
  • Minimal material and energy wastage
  • High productivity with consistent quality output
  • Precision-machined, chrome-plated rollers to prevent surface scratches
  • Long service life due to premium-grade materials
  • Fully customizable solutions to meet specific production requirements

Raw Material Compatibility

  • Material: Galvanized steel
  • Strip Thickness: 0.6 mm – 1.8 mm

Applications

  • Storage rack systems
  • Industrial shelving
  • Warehouse structures
  • Angle frames and support systems
  • Modular industrial fabrication

Customization & After-Sales Support

VAAM™ Engineering provides fully customized roll forming solutions based on customer specifications. Our dedicated technical team supports you from machine installation to long-term after-sales service, ensuring smooth and efficient production throughout the machine lifecycle.

Manufacturing Process Flow

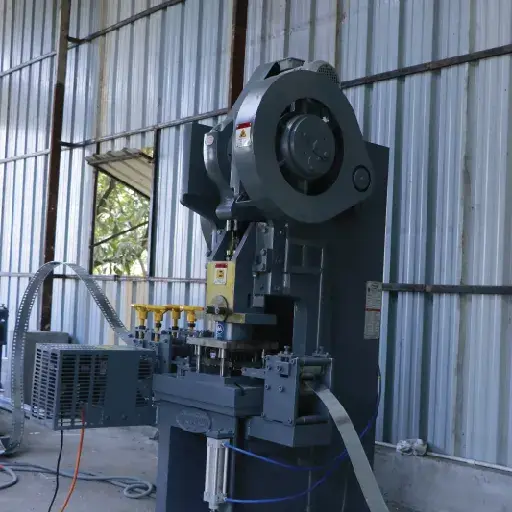

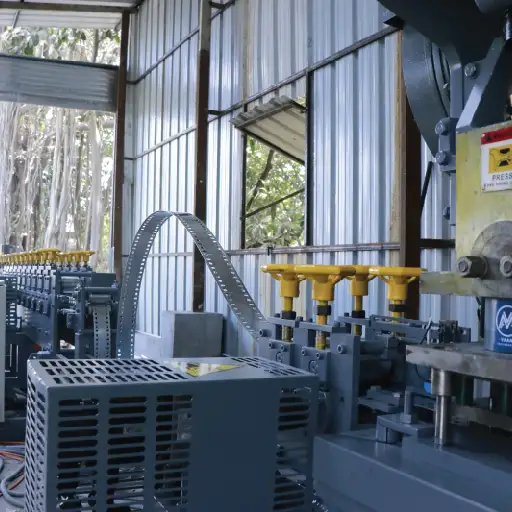

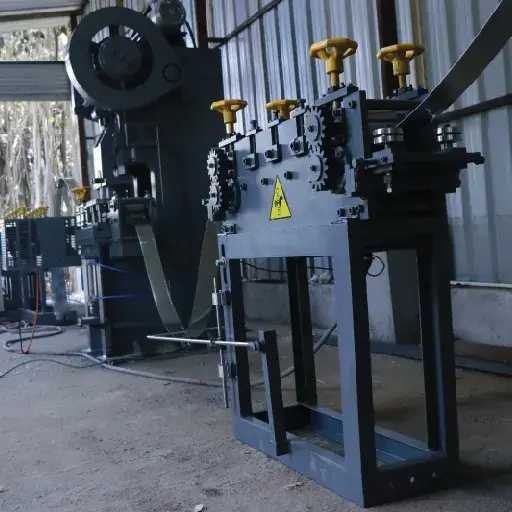

Coil Feeding → Hole Punching → Roll Forming → Automatic Hydraulic Cut-Off → Finished Product

This streamlined process ensures smooth material handling, precise forming, and consistent final output.

Technical Features

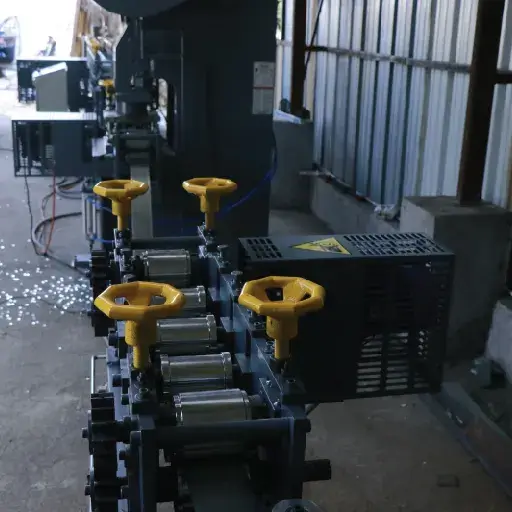

Roll Forming System

  • AC motor-driven common shaft system
  • Individual reduction gear for each forming stand
  • All rollers rotate simultaneously for uniform forming

Production Speed

  • Maximum forming speed: 9 meters/minute
  • Speed adjustable as per production requirements

Hydraulic Cut-Off System

  • Automatic hydraulic cutting for continuous operation
  • Cut-off die made of SKD11 tool steel
  • Vacuum heat treated to HRC 58–61 for high wear resistance

Product Length Control

  • Adjustable product length: 1.5 – 4.0 meters
  • Length tolerance: ±3.0 mm

Machine Specifications

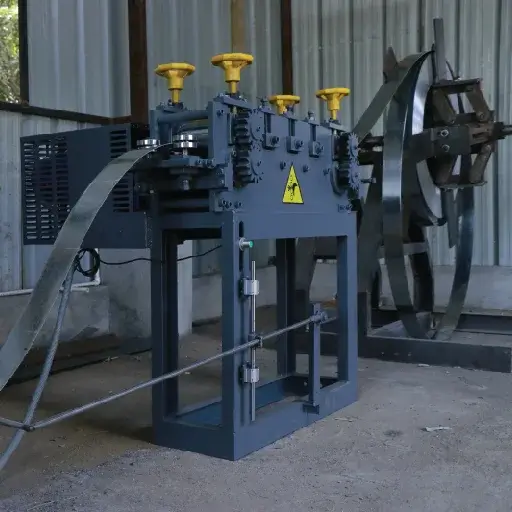

A. Single Head Uncoiler – 1 Unit
  • Loading capacity: 1,100 kg
  • Coil OD: 1,200 mm
  • Coil ID: 480 – 510 mm
  • Coil width: 100 mm
  • Manual coil tightening
  • Driven motor: 2 HP

B. Cold Roll Forming Machine – 1 Unit
  • Model: G-240-CL (Fixed Type)
  • Roll forming stands: 12 stands + entry guide
  • Machine base: High-strength steel with precision welding and stress relief
  • Individual worm gear reduction with common drive shaft
  • Main motor: 7.5 HP
  • Roll shaft diameter: Ø40 mm (S45C steel)
  • Rolls: SKD11, vacuum heat treated, hardness HRC 58–61
  • Roll forming speed: Max 9 m/min
  • Output: Max 3 pieces/min (3-meter length)
  • Roller cooling system: 0.5 HP
  • Product straightener: 1 set
C. Automatic Cut-Off Device – 1 Unit
  • Blade material: SKD11, vacuum heat treated
  • Hardness: HRC 58–61
  • Adjustable cut-off length: 1.0 – 4.0 meters
  • Length tolerance: ±3.0 mm
  • Hydraulic power pack: 3 HP

D. Product Run-Out Table – 1 Unit
  • Length: 3.5 meters
  • Product carrier system
  • Stacking device: 2 sets
  • Length locator: 1 set

E. PLC Electrical Control System – 1 Unit
  • Mitsubishi PLC controller
  • HMI touch-screen control panel
  • Voltage configuration as per customer requirement
