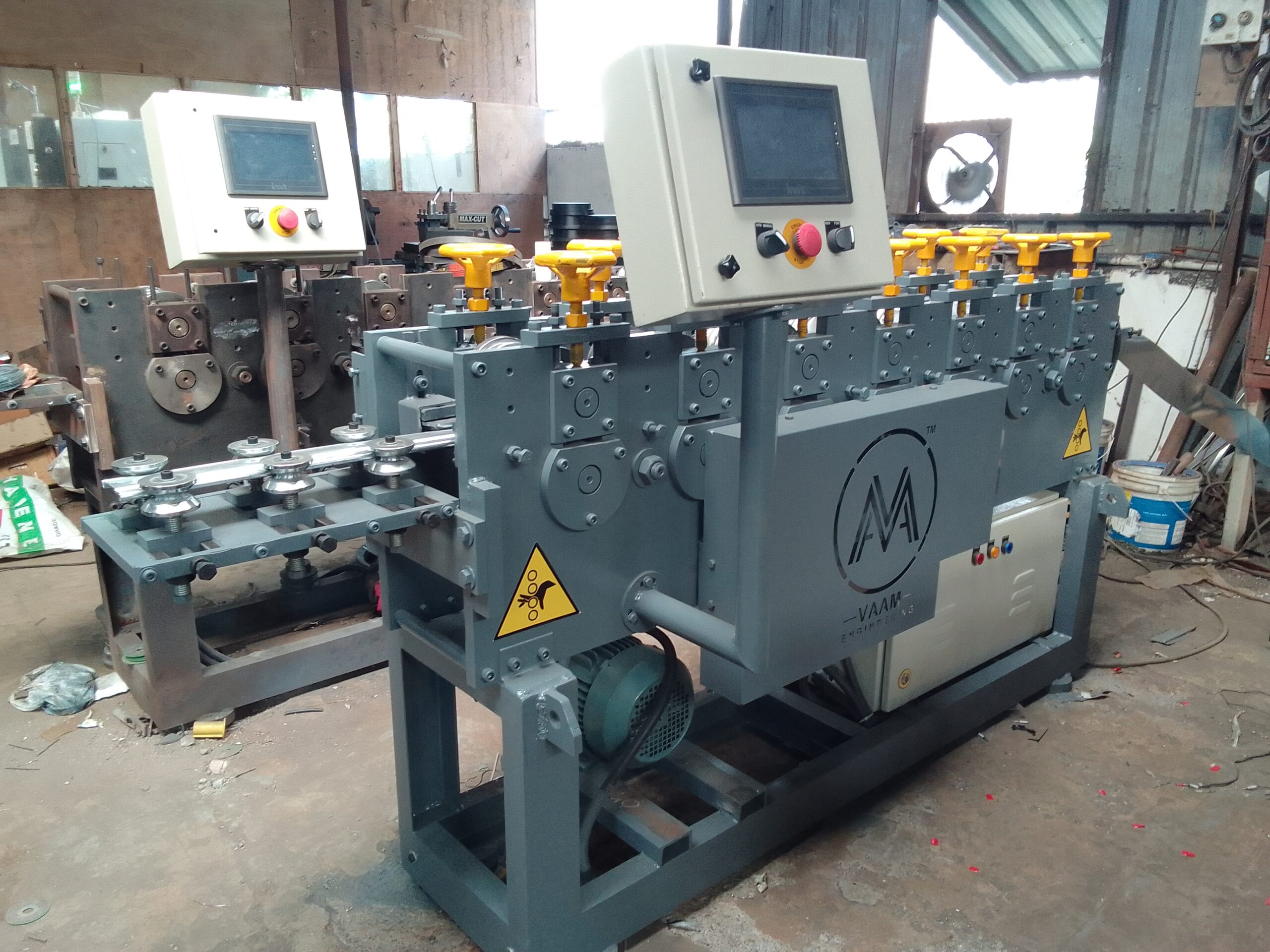

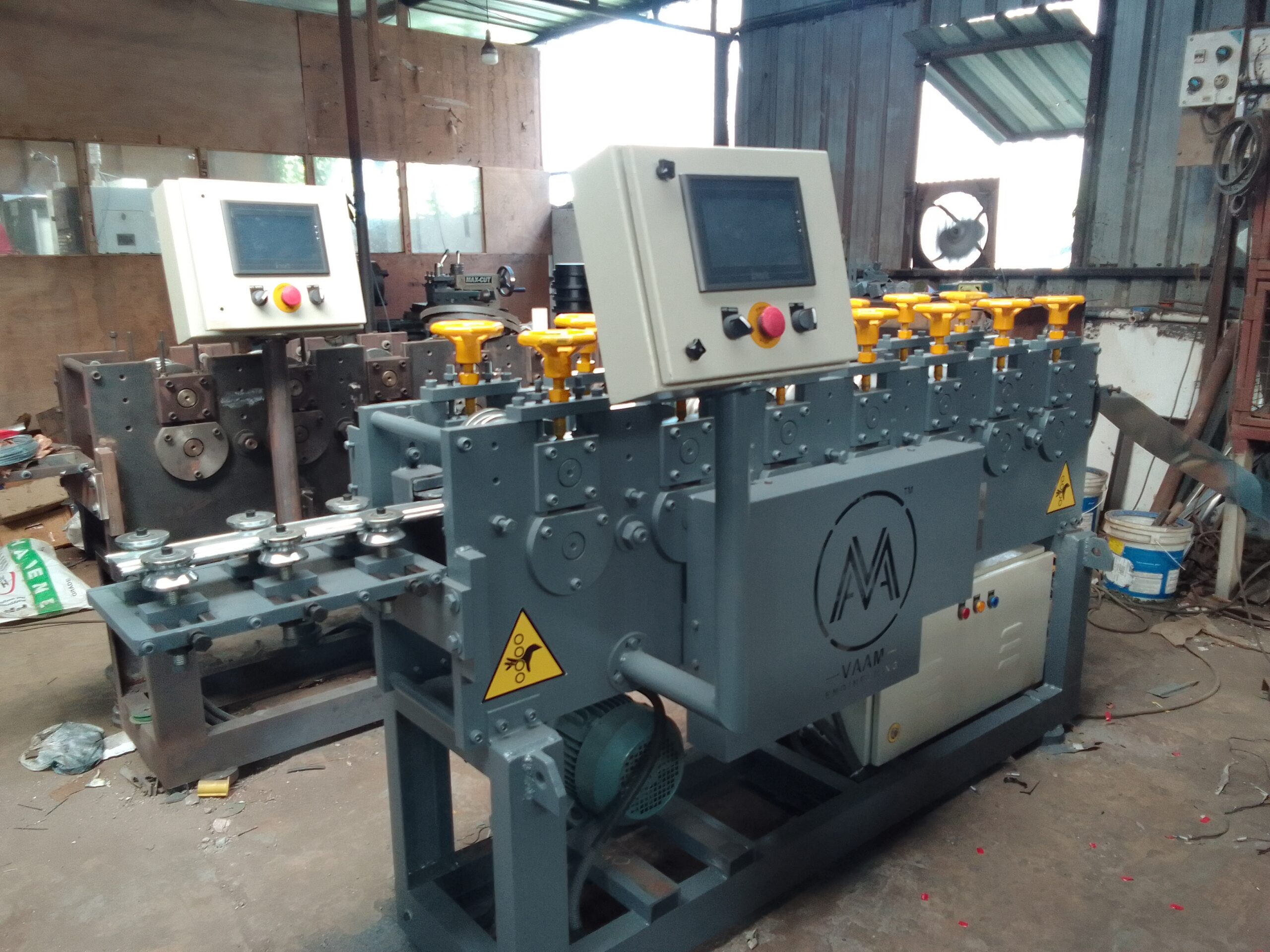

Semi Automatic Shutter Making Machine
Specifications:
Formed Material PGI,GI,AI Thickness:0.5-1.2mm
Main Body Roller station 6-12 Raws (As per Requirement)
Diameter of shaft 40-60mm solid shaft
Material of rollers En31
Machine body frame Wall-plate-frame-design/Light-stand-frame-design
Drive Gear Drive
Dimension(L*W*H) 6000mm×600mm×1500mm (estimated only)(Customize)
Weight Approx 1.5 tonne
Decoiler Hydraulic Automatic/Manual decoiler Manual decoiler with higher speed
Cutter Automatic cr12mov material, no scratches, no deformation
Power Motor Power 380V /50Hz/3PH or as the customer’s requirements
Control system PLC Automatic production of the whole machine. Can set batch, length, quantity, etc.
Forming Speed 10-12m/min(customized) Speed is adjustable according to customer’s request
