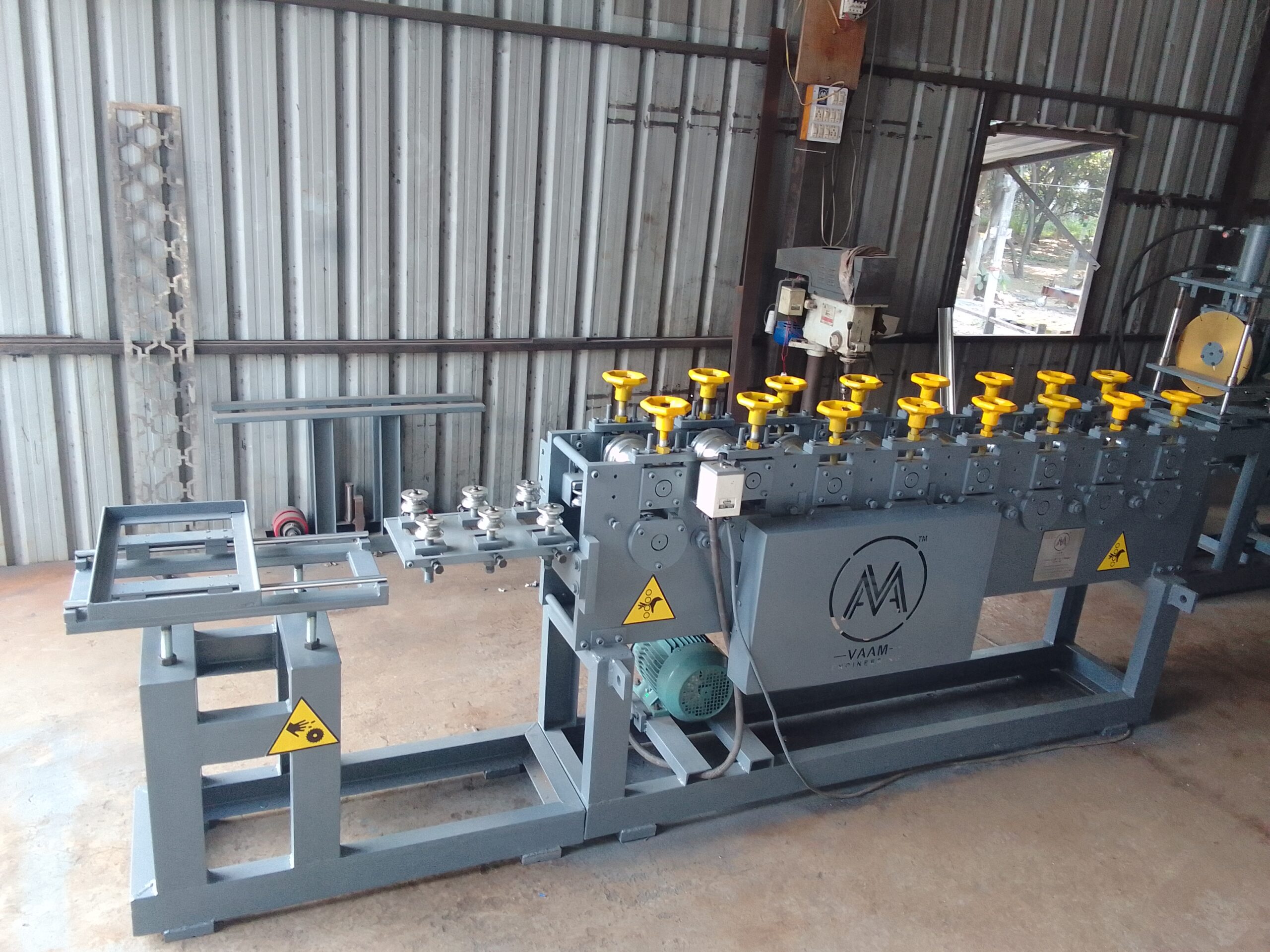

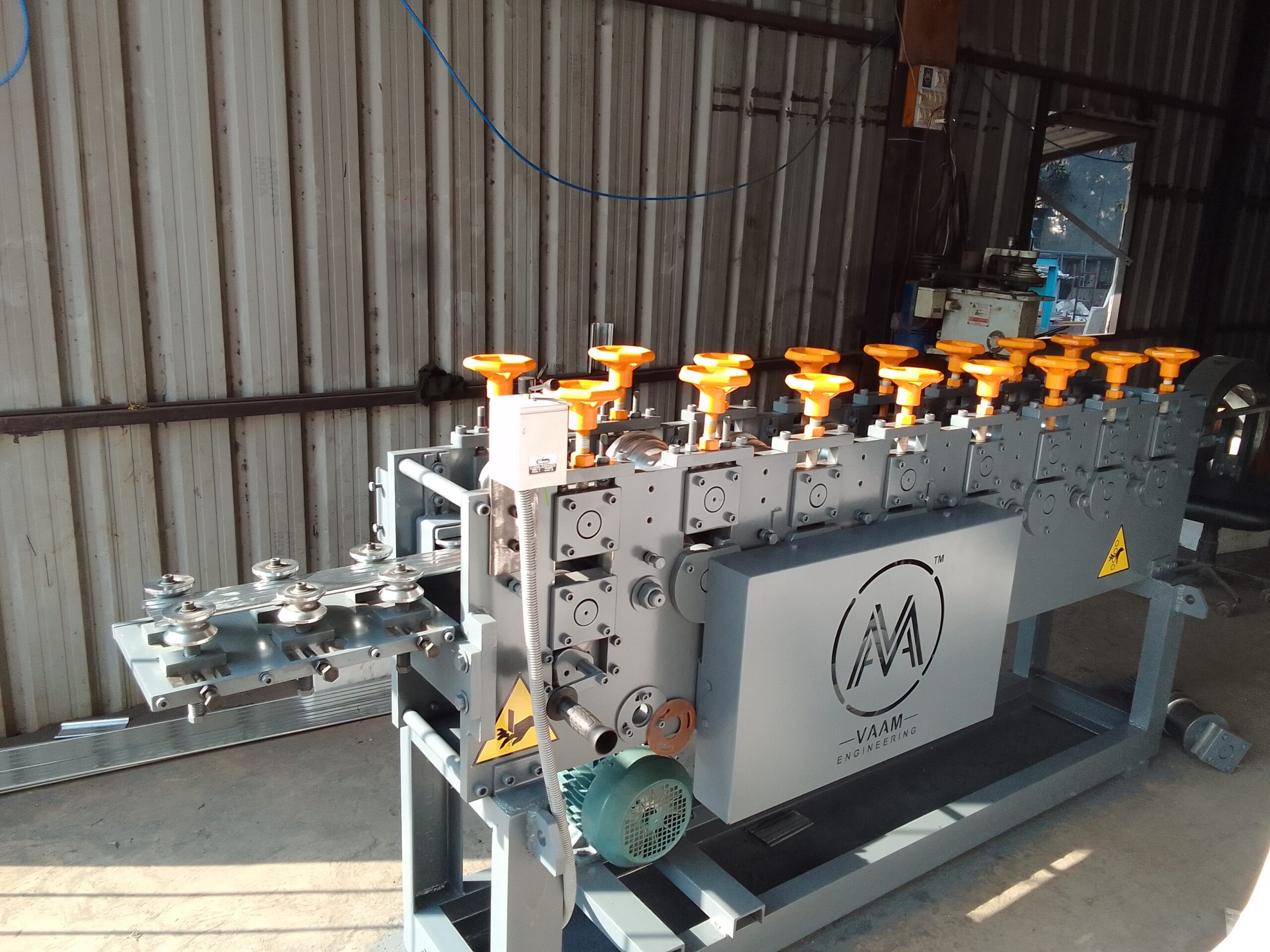

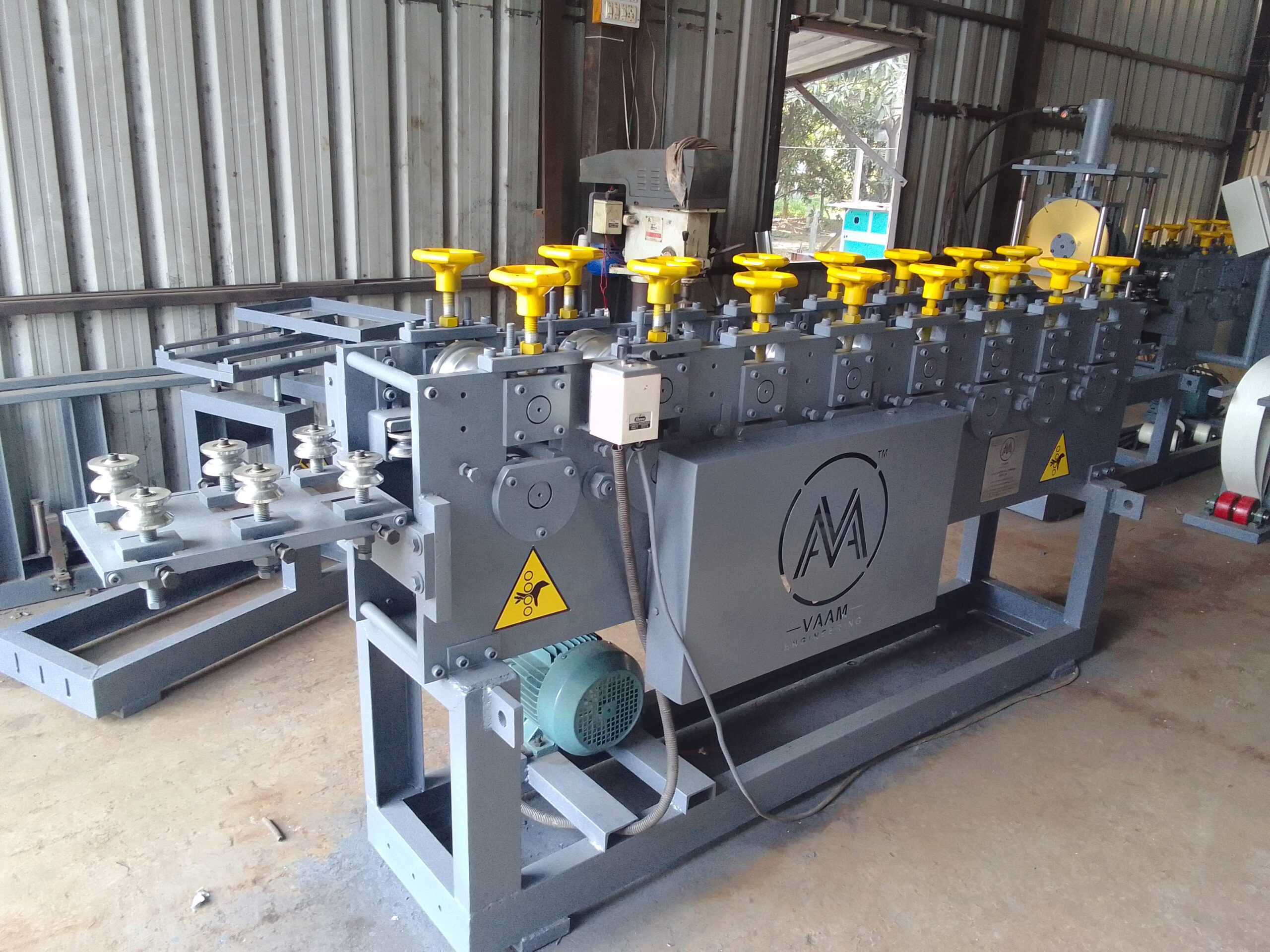

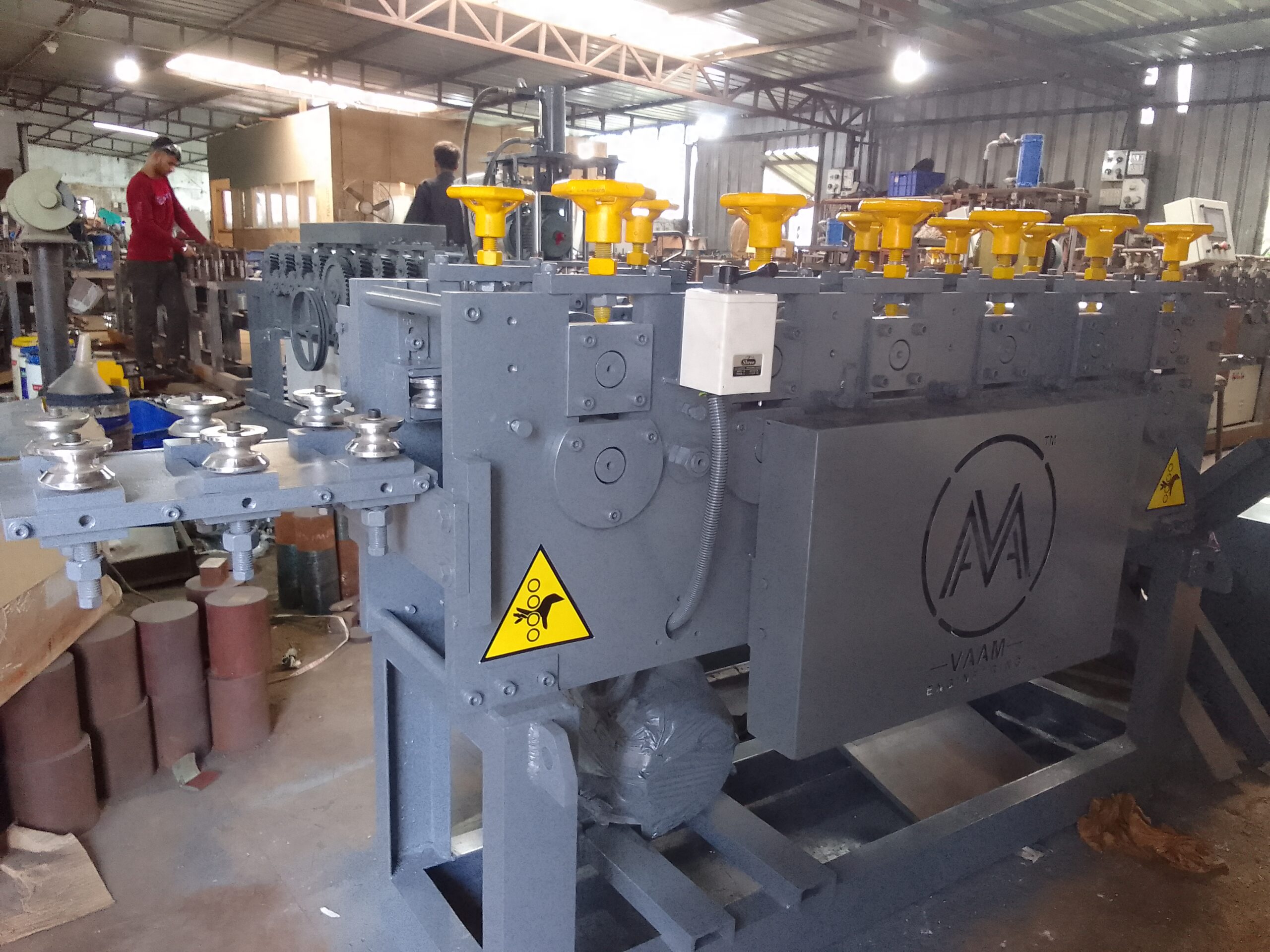

Manual Shutter Making Machine


Specifications:

  • Material: Galvanized Steel or Prepainted Steel strips;
  • Material width: 300mm Max;
  • Inner Diameter: 450—520mm;
  • Outer Diameter:1200mm;
  • Structure: H Steel welded to Steel Plate;
  • Thickness of Material: 0.6-1.2mm;
  • Roll Stations: 6-12 Stations;
  • Forming Speed: 0-25m/min;
  • Material of Roller: 45# steel coated with hard chrome;
  • Material of Shaft: 45# Steel with tempering treatment;
  • Dia. Of Shafts: 45-60mm;
  • Transmission: by gearbox;
  • cutting: Manual
